Applications & Functions:

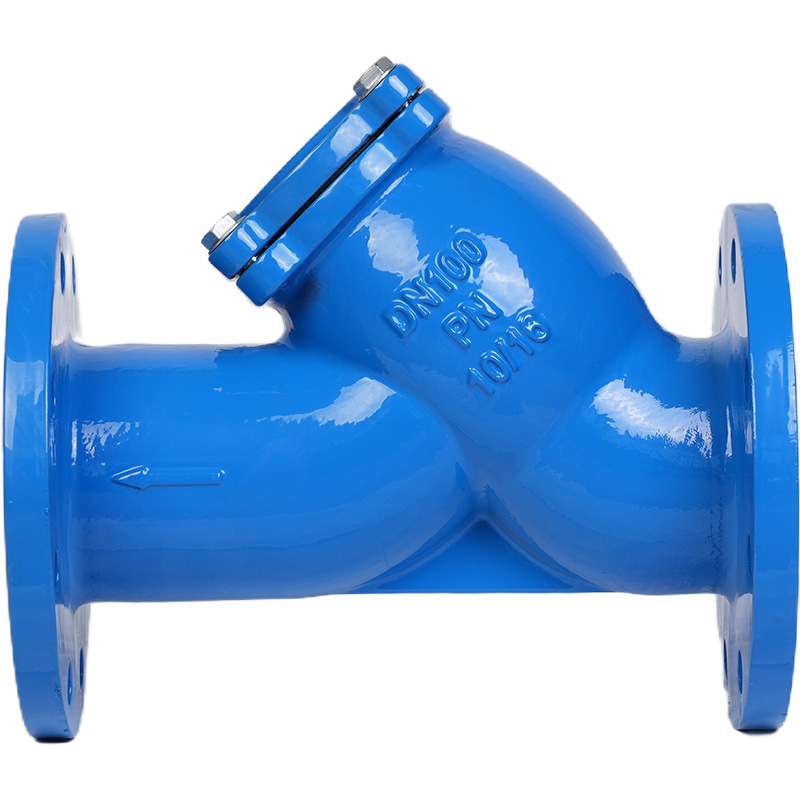

The flanged end pipeline strainer serves as an indispensable protection accessory for various pumps, valves, and instruments within piping networks. It is highly optimized for systems operating under a nominal pressure of less than 1.6 MPa. The valve is engineered to efficiently trap and remove debris, rust flakes, dirt, and other solid impurities from fluid mediums such as steam, compressed air, and water, ensuring the purity of the media and preventing premature wear or clogging of downstream equipment.
| Performance Specifications |
| Model |
Nominal Pressure(MPa) |
Applicable Medium |
Operating Temperature(℃) |
Main Component Materials |
| GL41H-10/16Q |
1.6 |
Water, oil, gas, etc. |
≤150℃ |
Ductile iron, stainless steel |
| Main shape and connection dimensions |
| Nominal pressure (MPa) |
Nominal diameter DN(mm) |
L(mm) |
D(mm) |
D1(mm) |
Z-Φd |
| 1.6 |
50 |
203 |
160 |
125 |
4-18 |
| 65 |
245 |
180 |
145 |
4-18 |
| 80 |
270 |
195 |
160 |
8-18 |
| 100 |
308 |
215 |
180 |
8-18 |
| 125 |
335 |
245 |
210 |
8-18 |
| 150 |
390 |
280 |
240 |
8-23 |
| 200 |
430 |
335 |
295 |
12-23 |
| 250 |
480 |
405 |
355 |
12-25 |
| 300 |
615 |
460 |
410 |
12-25 |
| 350 |
690 |
520 |
470 |
16-25 |
| 400 |
790 |
580 |
525 |
16-30 |
| 450 |
830 |
640 |
585 |
20-30 |
| 500 |
930 |
705 |
650 |
20-34 |
